Walkthrough - Android 11 (API 30) Work Profile Setup & Run

This developer guide provides step-by-step instructions on how to set up an Android 11 Work Profile (Managed Profile) on an emulator using command-line tools (adb), install the NTP DIG PING MORE application inside the work profile, and run/debug it.

Prerequisites

Before starting, ensure that:

1. You have the Android SDK installed and adb is available in your shell's PATH.
2. An Android Emulator running Android 11 (API 30) is booted and connected to ADB.
3. You have the Test DPC APK (testdpc.apk) and the project's debug APK (app-debug.apk) available locally.

Step 1: Launch and Reset the Android 11 Emulator

Start the Android 11 emulator using wiped user data to guarantee a clean environment:

emulator -avd Medium_Phone_API_30 -wipe-data

Ensure the emulator is fully booted by verifying:

adb devices
# Output should show: emulator-5556	device

adb -s emulator-5556 shell getprop sys.boot_completed
# Output should be: 1

Step 2: Create a Work Profile via CLI on Android 11

To create a managed work profile associated with the primary user (User 0), execute the following command:

adb -s emulator-5556 shell pm create-user --profileOf 0 --user-type android.os.usertype.profile.MANAGED "Work Profile"

[!NOTE] Android 11 is the first version to introduce full support for the modern --user-type flag. This flag is the standard and correct way to create a secure managed profile user on Android 11 and above.

Expected Output

Success: created user id 10

[!NOTE] The created user ID (typically 10 or higher) will be referred to as USER_ID in all subsequent commands.

Start the newly created profile user:

adb -s emulator-5556 shell am start-user USER_ID

Step 3: Setup Test DPC as the Profile Owner

Test DPC is an enterprise utility used to simulate device policy constraints.

1. Install Test DPC to the managed profile user:

   adb -s emulator-5556 install --user USER_ID testdpc.apk

2. Register Test DPC as the official Profile Owner of the work profile:

   adb -s emulator-5556 shell dpm set-profile-owner --user USER_ID com.afwsamples.testdpc/.DeviceAdminReceiver

Expected Output

Success: Active admin and profile owner set to (com.afwsamples.testdpc/com.afwsamples.testdpc.DeviceAdminReceiver) for user 10

Step 4: Install the Application in the Work Profile

Install the project's debug APK inside the work profile using the --user flag:

adb -s emulator-5556 install --user USER_ID ./app/build/outputs/apk/debug/app-debug.apk

Expected Output

Performing Streamed Install
Success

Step 5: Launch the Application in the Work Profile

Launch the NTP DIG PING MORE application launcher activity targeting the work profile user:

adb -s emulator-5556 shell am start --user USER_ID -n io.github.mobilutils.ntp_dig_ping_more/.MainActivity

Expected Output

Starting: Intent ( cmp=io.github.mobilutils.ntp_dig_ping_more/.MainActivity )

In the emulator screen, you should now see the application open with a small briefcase badge on the bottom right of its launcher icon and task switcher bar, confirming that it is successfully running inside the secure Work Profile partition on Android 11!

Summary of command used to setup and run the app inside the Work Profile on Android 11

Tracking Android execution and ADB commands for Work Profile setup on Android 11.

Validation Results

We verified that:

1. The profile user was created successfully with ID 10.
2. Test DPC was set as the profile owner.
3. The NTP DIG PING MORE app (io.github.mobilutils.ntp_dig_ping_more) was successfully installed inside user 10 profile.
4. The app successfully launched under the profile user 10.

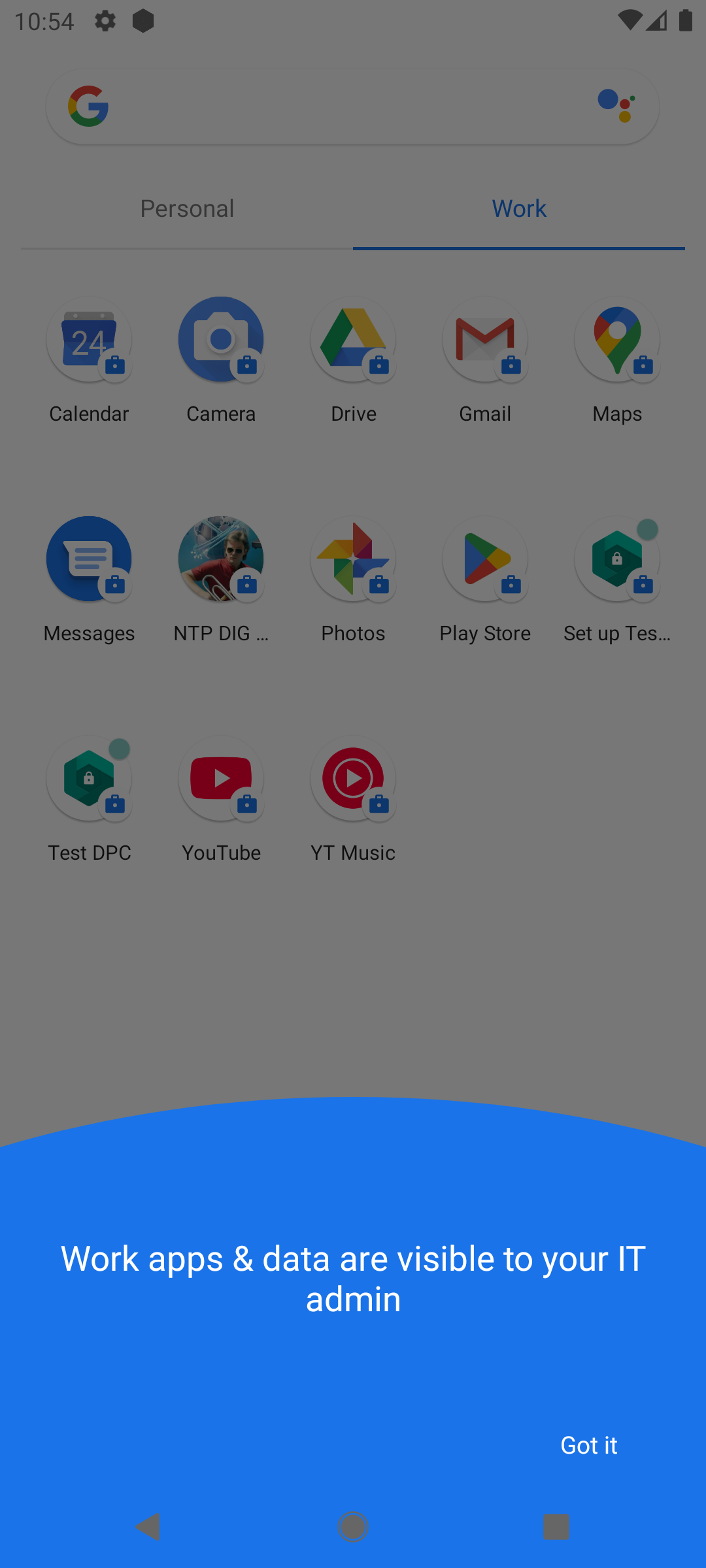

Here is the captured emulator screenshot verifying that the NTP DIG PING MORE app successfully launched inside the secure Work Profile partition on Android 11:

User Profile	Work Profile
